FLAGSHIP · INDUSTRIAL
[ Magic-HT-PRO ]
IEMAI · Industrial SKU · MAGIC-HT-PRO

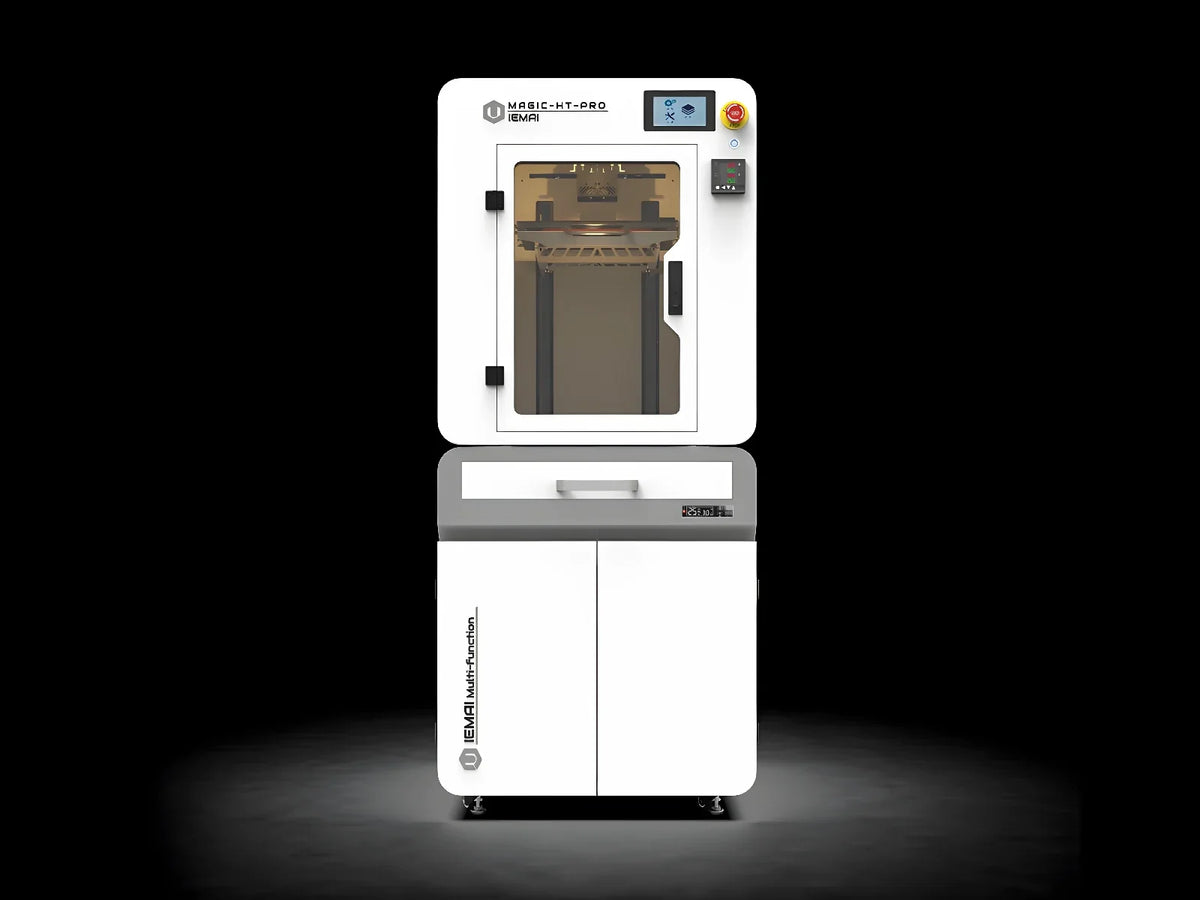

Magic-HT-PRO
high-temperature industrial printer

Industrial · IEMAIFLAGSHIP

Build
500 × 500 × 500 mm
Nozzle · max
500 °C
Chamber
120 °C
Request a Quote
4-6 weeks
Download datasheet
12-month warranty. Parts and labor, worldwide.
2-day on-boarding. Included with machine.
Tech support in EL. 24-hour response.
Spare parts in stock. Indefinitely, at cost.
Full specification

Every number we have.

Scannable in 5 seconds. Collapsible groups to drill deeper.

01Build envelope

+
Build volume
500 × 500 × 500 mm
Positioning accuracy
±0.05 mm
Layer resolution
0.05-0.60 mm
Frame type
Industrial CoreXY · welded steel

02Temperature

+
Nozzle temp · max
500 °C
Heated bed · max
200 °C
Heated chamber · max
120 °C
Active cooling
Chamber-regulated, PID controlled

03Speed

+
Max print speed
300 mm/s
Max travel speed
500 mm/s
Acceleration
5,000 mm/s²
Flow rate
32 mm³/s peak

04Connectivity

+
Interface
10.1″ capacitive touchscreen
Network
Ethernet · Wi-Fi · USB
Cameras
HD build monitor · cloud monitoring
Control
Free cloud remote · OTA firmware

05Compatible materials

+
All supported
PEEK · PEI · PPSU · PA-CF · CF-PC · CF-ASA · Standard
Nozzle
Hardened steel · tungsten carbide

06Warranty & service

+
Warranty
12-month · parts & labor
Tech support
Response within 24 hrs · Mon–Fri PT
On-site service
Available · quoted separately
Training
2-day on-boarding included
Technical downloads

PDFs & sample files.

PDF
Machine datasheet

14 pages · 2.4 MB

PDF
Installation guide

32 pages · 4.1 MB · English

3MF
Sample print · calibration

12 KB · pre-sliced profile

PDF
Material compatibility chart

4 pages · 1.1 MB

STEP
CAD footprint · facility planning

820 KB · STEP AP214

PDF
Warranty & service terms

3 pages · 0.4 MB

ROI CONSIDERATIONS

From quote to
first production part.

Typical payback window for a Tier-2 supplier running jigs and fixtures: 6–9 months. Engineering services shops see payback in 3–5.

6–9 mo
Typical payback
85%
Material utilization
$0.78 /cm³
PA-CF cost in
24 hr
From quote to part
Recommended consumables

Stocked for this machine.

IEMAI PEEKFilament [ IEMAI PEEK ]
PEEK · 1.75mm · 1kg spool

IEMAI PEEK

QuoteHIGH-TEMP
IEMAI CF-PEEKFilament [ IEMAI CF-PEEK ]
CF-PEEK · 1.75mm · 1kg spool

IEMAI CF-PEEK

QuoteHARDENED NOZZLE
IEMAI CF-PA12Filament [ IEMAI CF-PA12 ]
CF-PA12 · 1.75mm · 1kg spool

IEMAI CF-PA12

QuoteHARDENED NOZZLE
IEMAI CF-PCFilament [ IEMAI CF-PC ]
CF-PC · 1.75mm · 1kg spool

IEMAI CF-PC

QuoteHARDENED NOZZLE
Frequently asked

Common questions.

Do you ship outside the continental US?

+

Yes — machines ship anywhere in North America via freight. Please request a quote for international delivery; we handle export documentation in-house.

What is the installation process?

+

Industrial machines include a 2-day on-boarding session at your facility (PST travel days quoted separately). Consumer machines ship ready-to-use.

Can I try before I buy?

+

We run demo prints on request. Send us a representative STL; we'll print it on the machine you are considering and ship the part for evaluation — no obligation.

How does service work after the warranty ends?

+

All DML-supplied machines are supported indefinitely for parts and labor at time-and-materials rates. We keep spare parts in El Monte for every model we sell.
